How to change the mission entry point in WingtraPilot

This article explains how can you change the start point of your mission as well as the start point of each created flight area and/or corridor in your mission

Area mapping

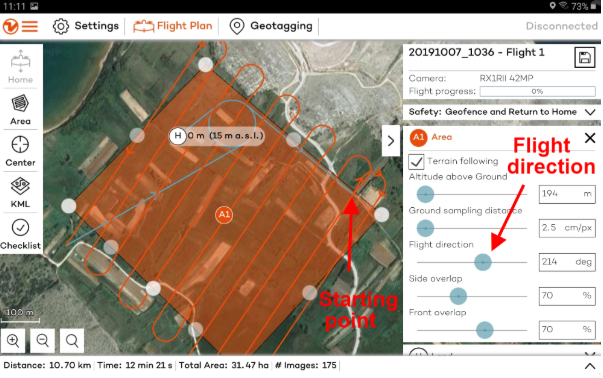

Once you have created the mapping area in WingtraPilot you can change the start point of mapping by changing the direction of flight lines by 180°

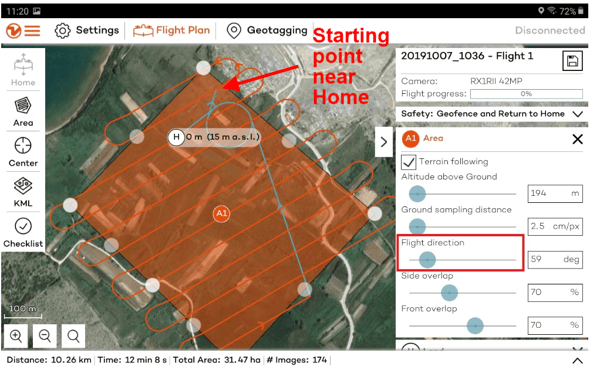

  • If the flight direction value is lower than 180°, add 180° to your value to change the start point of the mapping areaarea2
  • If the flight direction value is higher than 180°, subtract 180° from your value to change the start point of the mapping areaarea1

This procedure can be done for each created mapping area separately which means that you can optimize your flight plan in order to maximize your efficiency.

Corridor mapping

After you have created the corridor in WingtraPilot you can choose the start point of mapping by toggling this option in WingtraPilot.

corridor1-1

After toggling this option the start point and the end point will be reversed.

corridor2-1
