- Please download the WingtraHub and Skyscanner installer from this link
- Plug in the SD card into the SD card reader provided with the payload
Make sure to plug the SD card the correct way, it should fit in easily and the arrow on the SD card should be matching the arrow on the reader. The images below should highlight this.
- Plug in both cable (USB A to micro B and USB A to micro USB)
- Plug in the WingtraOne SD card to your computer
- Copy the WingtraPilotProjects from the WingtraOne SD card to your computer
- Open the WingtraHub software on your computer
- Select the geotagging option in the toolbar
- Open the WingtraPilotProjects directory you copied before and select the project you want to process and click next
- Choose PPK processing if you have a base file to correct the position. The output geotagged images cannot be ticked with the D2M camera.
- Click the start processing button and if all the information is complete, then you should get this success message with all processing summary

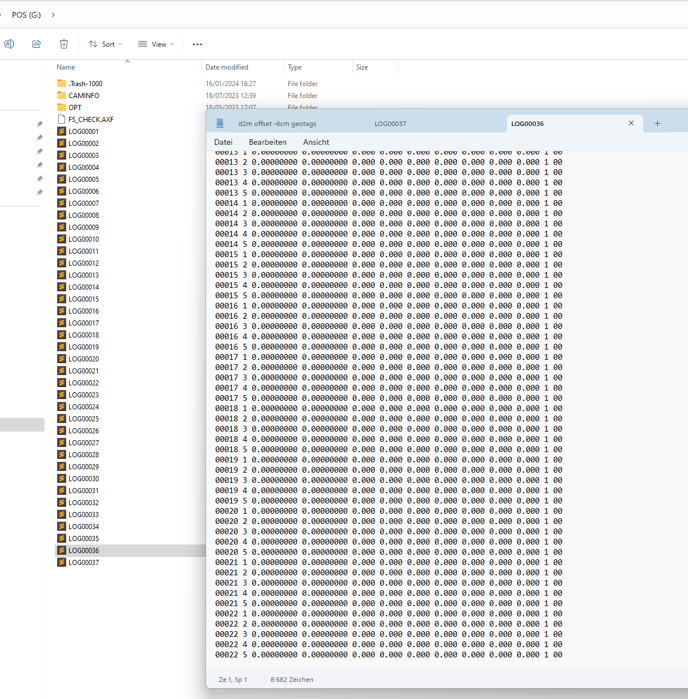

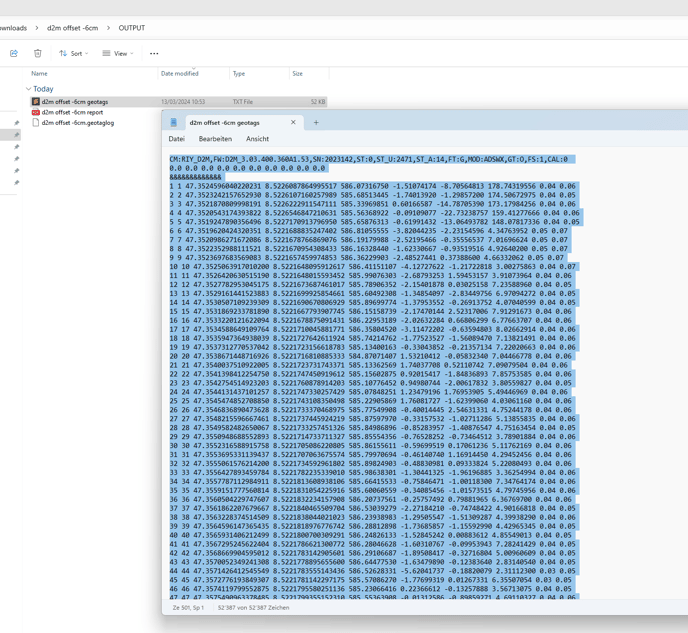

- Copy the content of the output file (name of project geotags.TXT) and paste it to the correct POS LOGXXXX.txt file
When pasting it to the LOGXXXX.TXT file make sure to paste it to the correct file, it may not be the last file if you repowered the drone since. The number of images (first number of each line) should match the number of images in your projects minus one image due to the preflight check

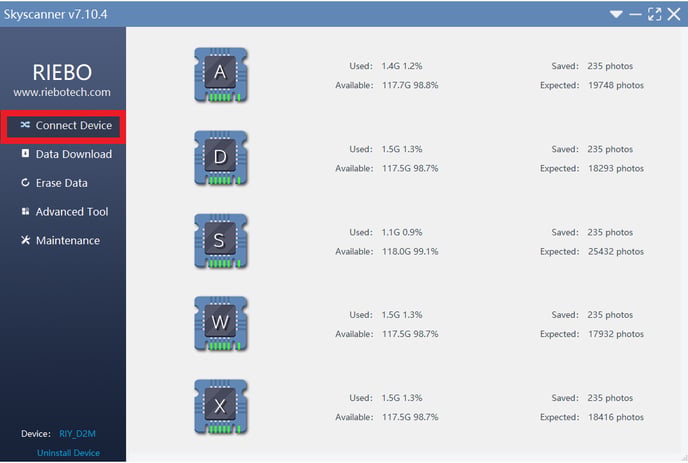

- Open Riebo's Skyscanner, and make sure the SD card is detected, you should see a summary of the information on the connect device tab.

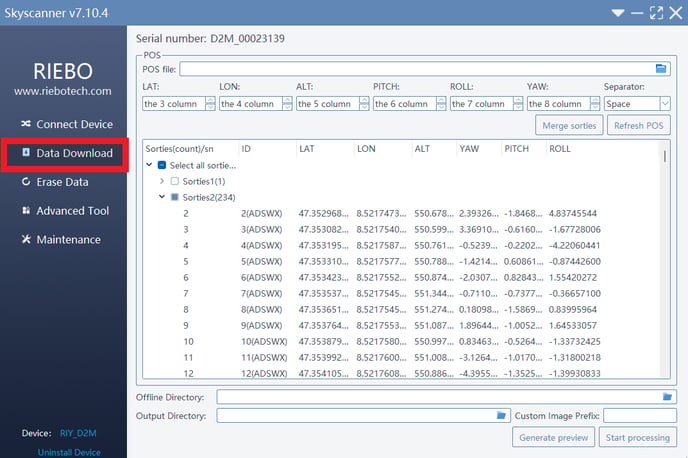

- Select the data download tab and select the latest sortie, the number of pictures should match the one in WingtraHub, once you select to extend the drop down you should see all the pictures position and orientation. Select the output directory and start processing.

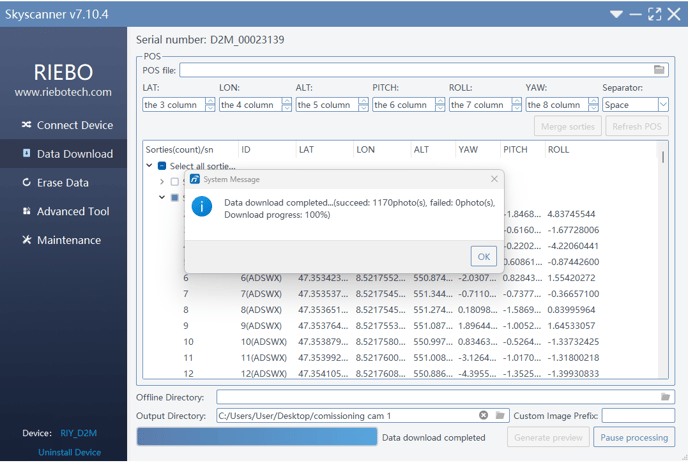

- Once the processing is finished, you will get a pop up with the summary of the processing
You will find your geotagged images in /path/to/output/directory/date_sortie/ValidData/image/ADSWX_Sight - Remember to clean your SD card after each flight to ensure you have no mismatch between the DCIM directories and POS LOG files
Experimental workflow, caution this might result in corrupted SD card if not handled with car:
- Plug in the SD card into the SD card reader provided with the payload
Make sure to plug the SD card the correct way, it should fit in easily and the arrow on the SD card should be matching the arrow on the reader. The images below should highlight this. - Plug in both cable (USB A to micro B and USB A to micro USB)
- Plug in the WingtraOne SD card to your computer
- Copy the WingtraPilotProjects from the WingtraOne SD card to your computer
- Open the WingtraHub software on your computer
- Select the geotagging option in the toolbar
- Open the WingtraPilotProjects directory you copied before and select the project you want to process and click next
- Tick the write output to POS drive, this directly write the geotags in the correct file on the camera's SD card. However, this requires to have the SD card connected, therefore you will see an additional check which verifies if the SD card is properly connected before you can start processing the images.
If the SD card is not detected, you will see the following message at the bottom of the screen:
If it is successfully connected you will see this message:
- Click the start processing button and if all the information is complete, then you should get this success message with all processing summary
- Open Riebo's Skyscanner, and make sure the SD card is detected, you should see a summary of the information on the connect device tab.
- Select the data download tab and select the latest sortie, the number of pictures should match the one in WingtraHub, once you select to extend the drop down you should see all the pictures position and orientation. Select the output directory and start processing.
- Once the processing is finished, you will get a pop up with the summary of the processing
You will find your geotagged images in /path/to/output/directory/date_sortie/ValidData/image/ADSWX_Sight - Remember to clean your SD card after each flight to ensure you have no mismatch between the DCIM directories and POS LOG files
